Weight from 2 – 1100 Kg Horizontal Balancing Machine
SYM 5000 series horizontal balancing machines are suitable for balancing operations of various rotors between 2 – 1100 kg with kardan or belt drive system. These machines are used for balancing of agricultural machine components, textile machine components, fans, cylinders, rotors, mills, etc. Optionally, horizontal or vertical axis working manual drilling unit can be mounted on the system.
- Computerized
- Innovative design
- High balancing accuracy
OPTIONAL ACCESSORIES
- Additional Bench
- Vertical Drilling Unit
- Special Protection Cage
- Spot Welding Unit
- Horizontal Drilling Unit

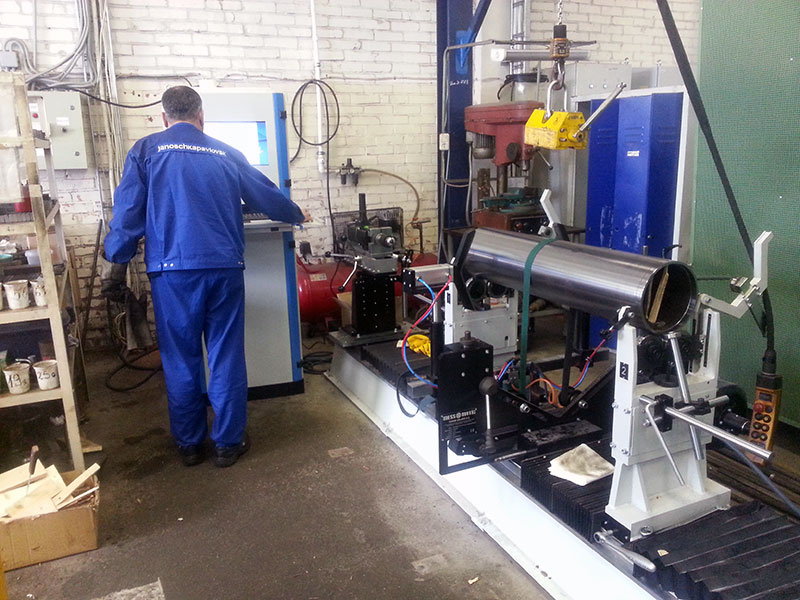

Photos
Technical Information
| Technicial Specifications | Unit | SYM 4500 | SYM 5300 | SYM 5700 | SYM 5900 |
|---|---|---|---|---|---|
| Maximum Rotor Weight | (Kg) | 150 | 300 | 700 | 1100 |
| Minimum Rotor Weight | (Kg) | 2 | 5 | 10 | 10 |
| Maximum Rotor Diameter | (mm) | 750 | 950 | 1400 | 1400 |
| Bearing Diameter | (mm) | 12 – 140 | 15 – 200 | 15 – 145 | 15 – 145 |
| Sensitivity | (g.mm) | – | |||
| Balancing RPM | (d/d) | 3000 | |||
| Optional Additional Bench | (mm) | + 1000 | |||
| Compressed Air | (bar) | 6 | |||
Machine Dimensions
