Main Features

Heavy duty vehicle wheel balancing machine designed for heavy-duty vehicles provides a reliable and effective solution to meet the wheel balance needs of heavy-duty vehicles. With its powerful performance and excellent precision, it is an indispensable tool for increasing the efficiency of heavy-duty vehicles and ensuring vehicle safety.

Sirion Truck heavy duty vehicle wheel balancers use an air lift system not found in many other brands to assist the operator. The Sirion Truck wheel balancing machine is the only domestically produced machine capable of balancing wheels for heavy-duty vehicles, trucks, buses, light commercial vehicles and cars.

Equipped with a 24” LCD screen, powerful motor, robust shaft system, and air lift, the user-friendly interface of the Sirion Truck tire balancing machine is designed as an engineering marvel. Balanced wheels are crucial for heavy-duty vehicles as they operate with high weights and travel long distances. Our specially designed wheel balancing machines, designed to maintain our standards of excellence, offer reliable and effective solutions for balancing the wheels of heavy-duty vehicles.

  1. 21.5" screen
  2. Easy operation via multi-functional symbols and keypad
  3. Automatic start controlled by hood switch
  4. Automatic pneumatic braking in unbalanced positions

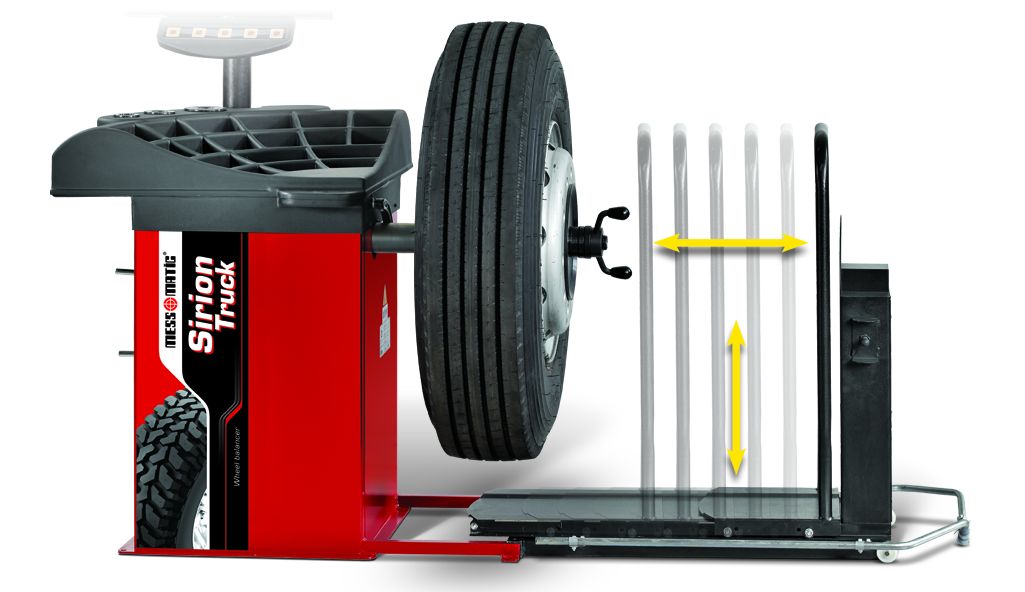

  5. Air lift system to lift heavy-duty vehicle tires
  6. Program for concealing lead division and wheel arms behind specially developed for aluminum wheels
  7. Special ALU/ALU-S/ALU-S1 programs for aluminum wheels
  8. Automatic positioning of inner surface unbalance point with a single button

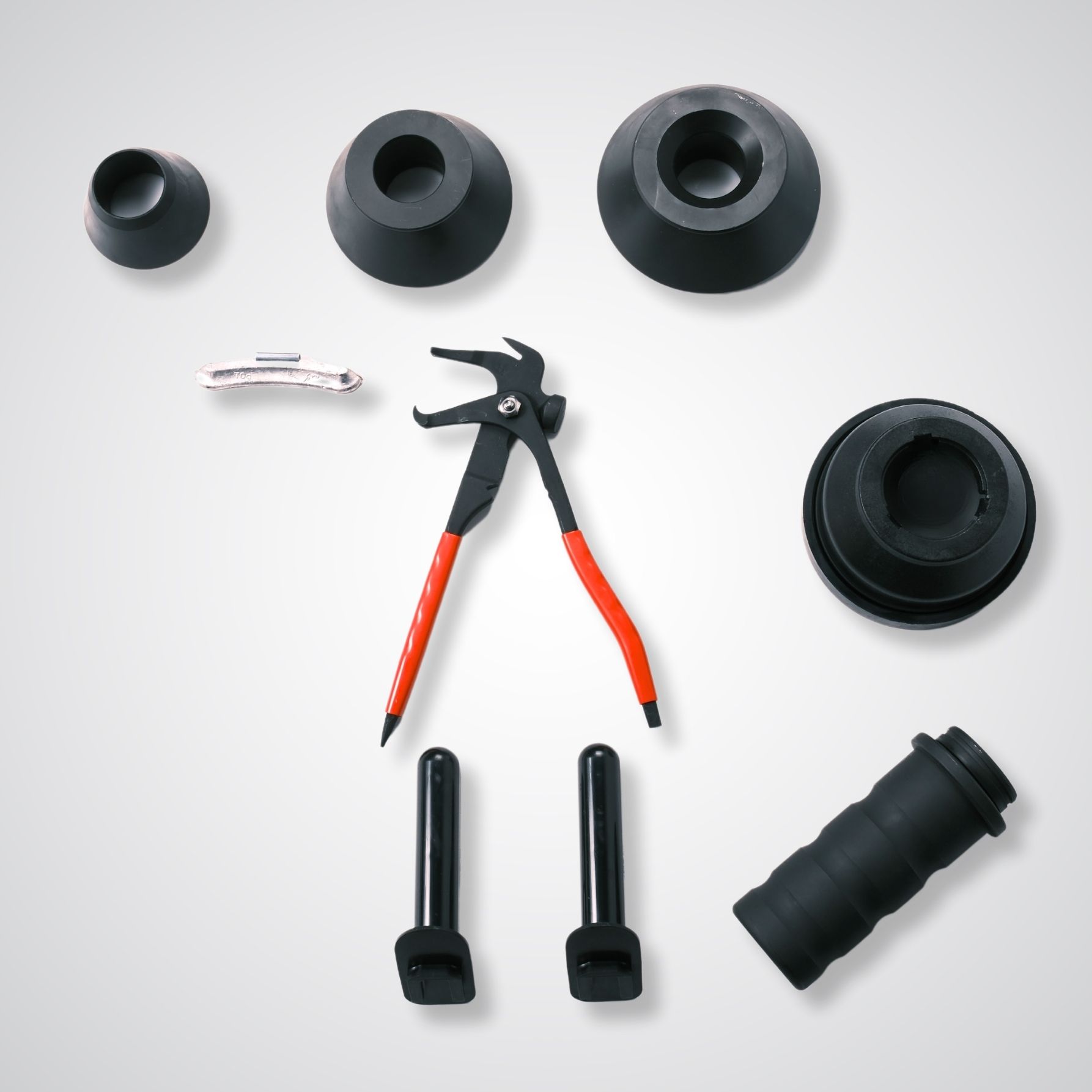

Standard Accessories






Technical Specifications Unit Pro/S Plus Pro/S Pro/Eco Lx/Eco Raptor Hector Monster
Vehicle Type Passenger and light commercial vehicles Passenger and light commercial vehicles Passenger and light commercial vehicles Passenger and light commercial vehicles Passenger and light commercial vehicles Passenger and light commercial vehicles Truck, passenger and light commercial vehicles
Max. Wheel Weight kg 75 75 70 65 75 65 250
Max. Wheel Diameter inch 40" 40" 40" 40" 40" 40" 1300 mm
Rim Diameter inch 10" - 30" 10" - 30" 10" - 30" 10" - 30" 10" - 30" 10" - 30" 10" - 30"
Rim Width inch 1.5" - 20" 1.5" - 20" 1.5" - 20" 1.5" - 20" 1.5" - 20" 1.5" - 20" 1.5" - 20"
Cycle Time sec. 6 6 8 8 6 8 8 - 20
Rotation Speed rpm 120 120 120 120 120 120 150 rpm (passenger cars) - 80 rpm (trucks)
Sensitivity gr 1 1 1 1 1 1 1
Power 230/1 50/60 Hz 230/1 50/60 Hz 230/1 50/60 Hz 230/1 50/60 Hz 230/1 50/60 Hz 230/1 50/60 Hz 230/1 50/60 Hz
Air Pressure bar Optional 8 Bar Optional 8 Bar Optional 8 Bar Optional 8 Bar Optional 8 Bar Optional 8 Bar Optional 8 - 10 Bar
